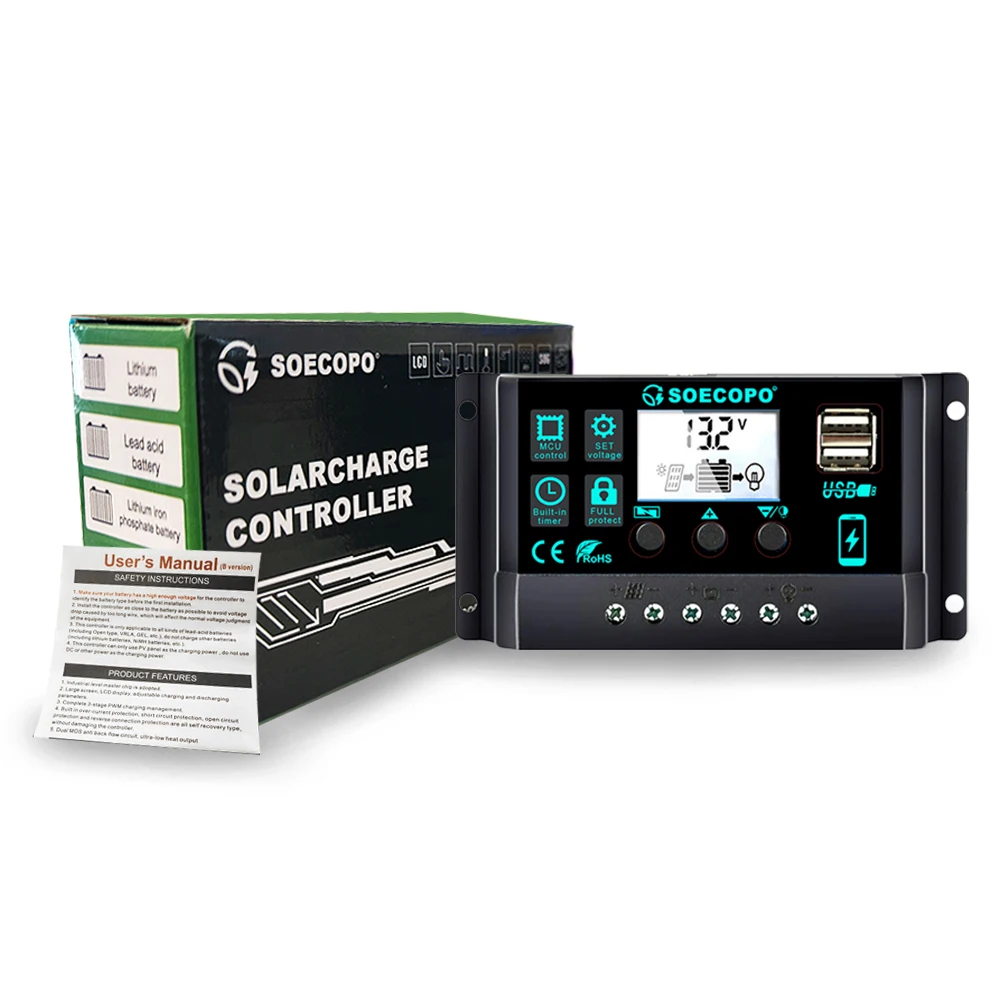

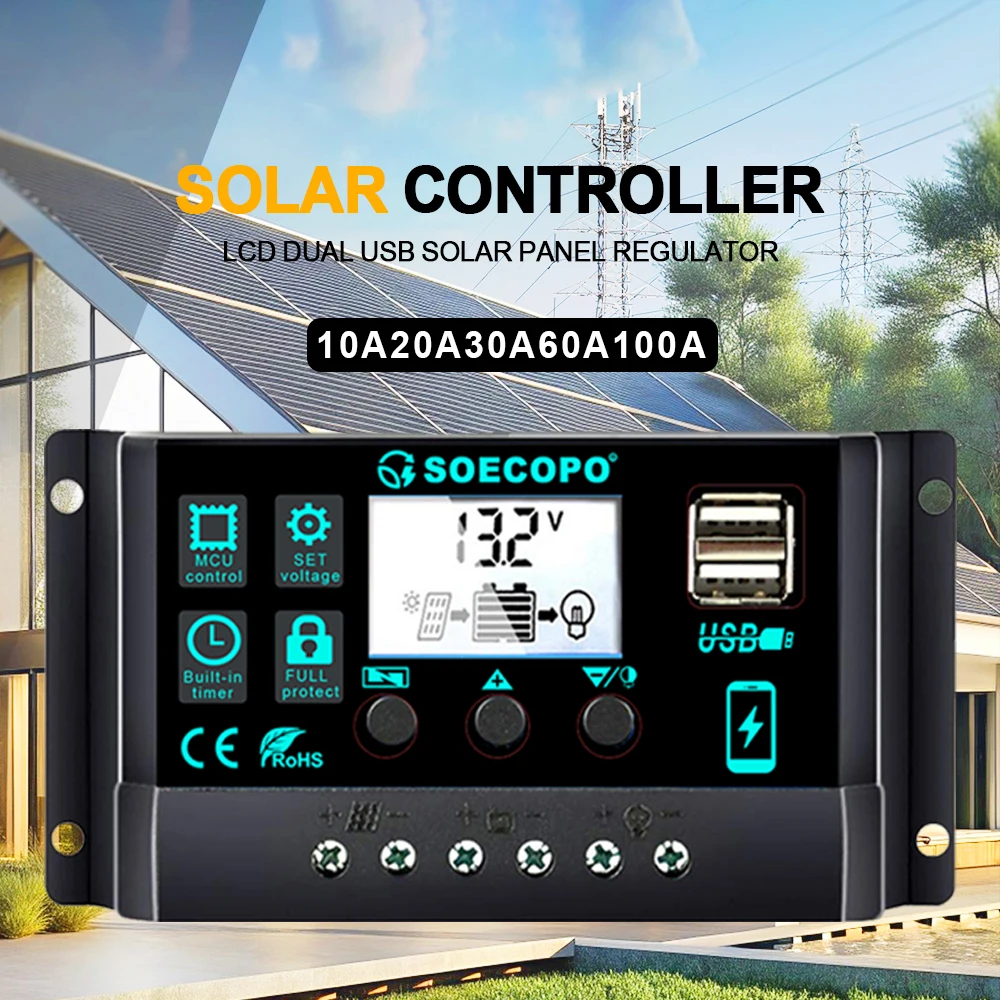

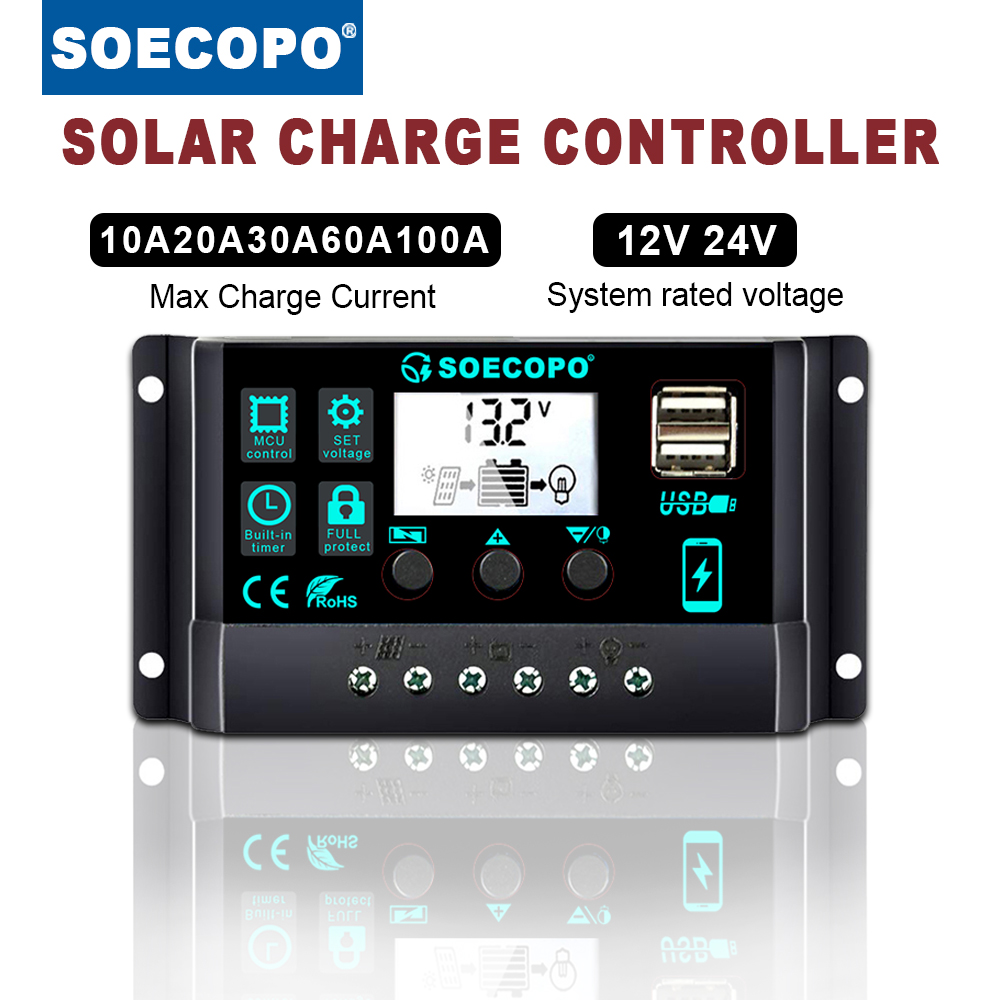

12V/24V 100A Solar Charge Controller AutoSwitch LCD Display with Overcharge/Short Circuit Protection for RV Boat Off-Grid System

12V/24V 100A Solar Charge Controller AutoSwitch LCD Display with Overcharge/Short Circuit Protection for RV Boat Off-Grid System
12V/24V 100A Solar Charge Controller AutoSwitch LCD Display with Overcharge/Short Circuit Protection for RV Boat Off-Grid System - Image 2
12V/24V 100A Solar Charge Controller AutoSwitch LCD Display with Overcharge/Short Circuit Protection for RV Boat Off-Grid System - Image 3
12V/24V 100A Solar Charge Controller AutoSwitch LCD Display with Overcharge/Short Circuit Protection for RV Boat Off-Grid System - Image 4
Facebook-f Twitter Pinterest-p Youtube

Original price was: $24.97.Current price is: $6.79.

Free standard delivery on orders over $100

Specifications

  • High-concerned chemical
    None
    Origin
    Mainland China
  • Certification
    CE,RoHS
Category

Description

🔋 12V/24V Dual Voltage Solar Charge Controller

Smart Auto-Switch & LCD Display | Overcharge/Short Circuit Protection

⚡ KEY FEATURES

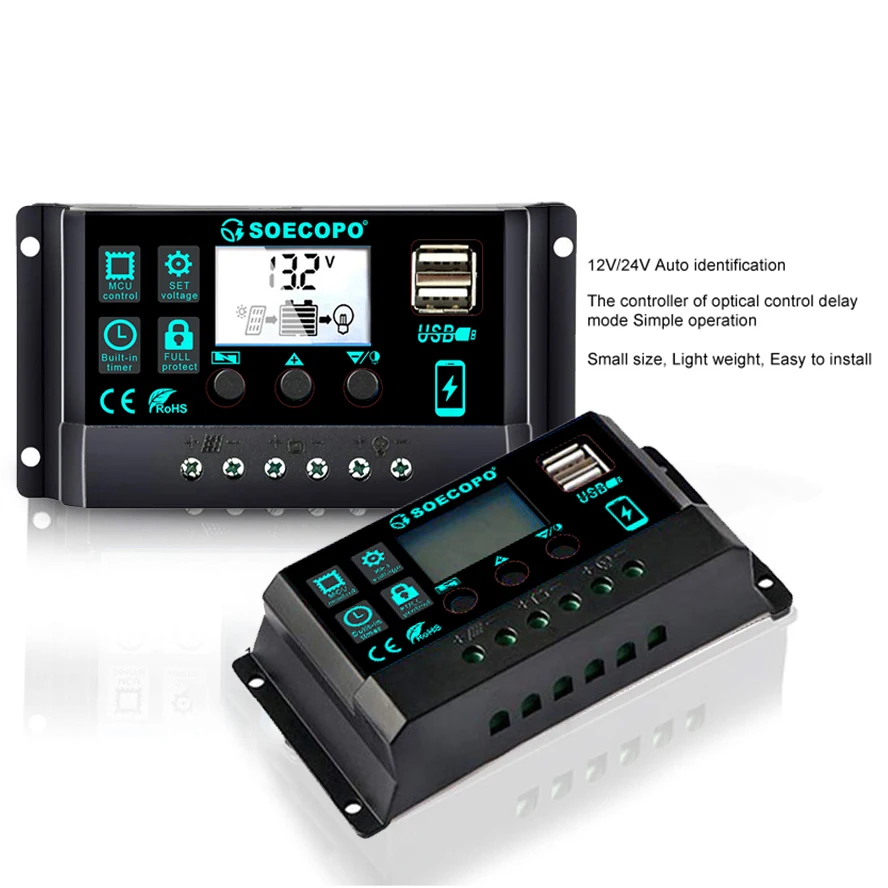

  • ✅ Dual Voltage Auto-Switch
    Automatically detects 12V/24V systems – No manual setting required! Perfect for RV, boats, and hybrid solar setups.
  • ✅ 3-Stage Smart Charging
    Boost ➜ Float ➜ Equalization charging modes maximize battery lifespan (+30% efficiency vs. basic controllers).
  • ✅ Real-Time Monitoring
    2.4″ LCD screen shows voltage, current, temperature, and charging status at a glance.
  • ✅ Military-Grade Protection
    Overcharge/Short circuit/Reverse polarity/Overload/Low-temperature compensation – 5-in-1 safety shield.
  • ✅ Universal Compatibility
    Works with AGM, Gel, LiFePO4 batteries and 100W-400W solar panels.

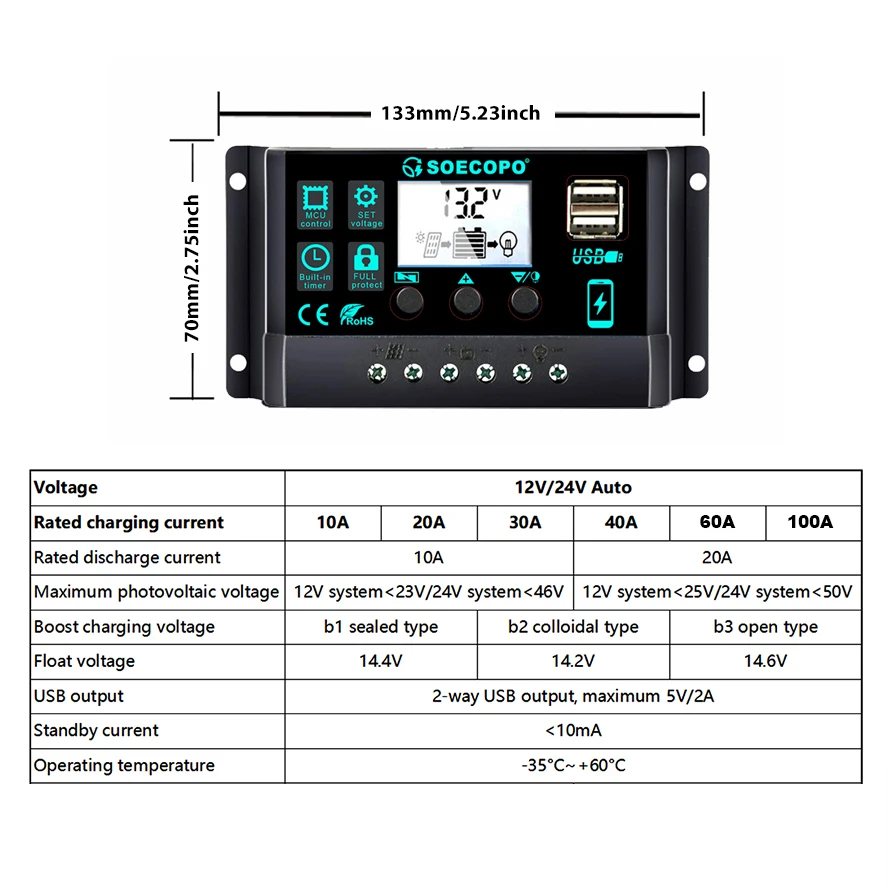

📊 TECHNICAL SPECIFICATIONS

▶ Voltage: 12V/24V Auto-Sensing
▶ Max Current: 10A/20A/30A/60A/100A
▶Floating charge voltage: 13.7V (adjustable)
▶End-off voltage: 10.7V (adjustable)
▶Discharge recover voltage: 12.6V (adjustable)
▶ Efficiency: ≥98%
▶ Temp Range: -35°C to +60°C
▶ Waterproof Rating: IP67 (splash-proof)
▶ Dimensions: 134x70x33mm | Weight: 0.14kg

🔧 TYPICAL APPLICATIONS

  • 1. The controller is 12V/24V auto-identification, when first installed, please make sure the battery has enough voltage so that the controller can be recognized as the correct battery type.
  • 2. Install the controller as close to the battery as possible to avoid the voltage drop caused by the long wire, which will affect the normal voltage judgment.
  • 3. The controller is only applicable to various lead-acid batteries (including open, sealed, gel, etc.), please do not use it for other batteries (including RI batteries, NiMH batteries, etc.).
  • 4. This controller can only use photovoltaic panels as the charging source, please do not use DC or other power sources as the charging source.
  • 5. The controller will be hot when running, please pay attention to install the controller on a flat, well-ventilated surface.

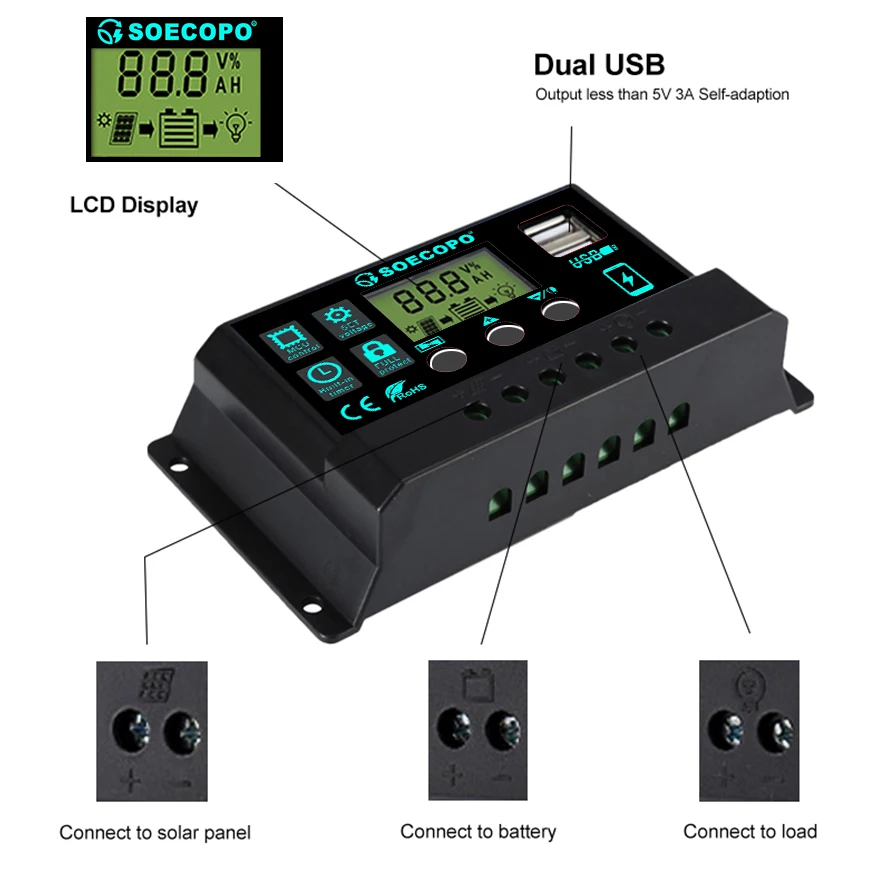

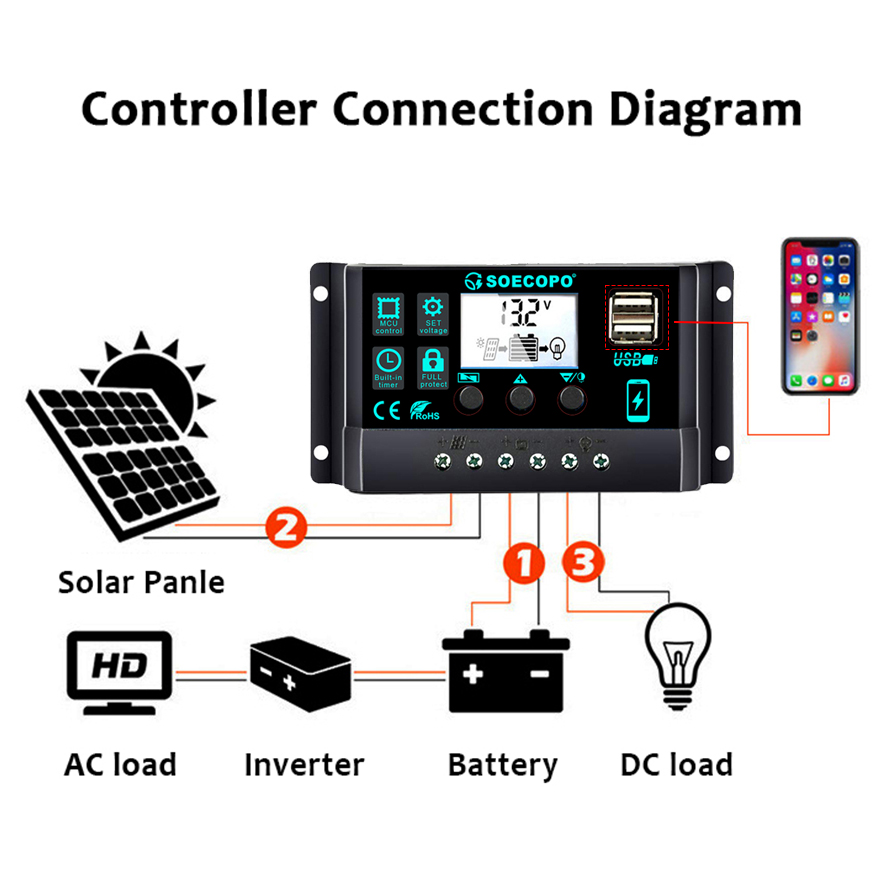

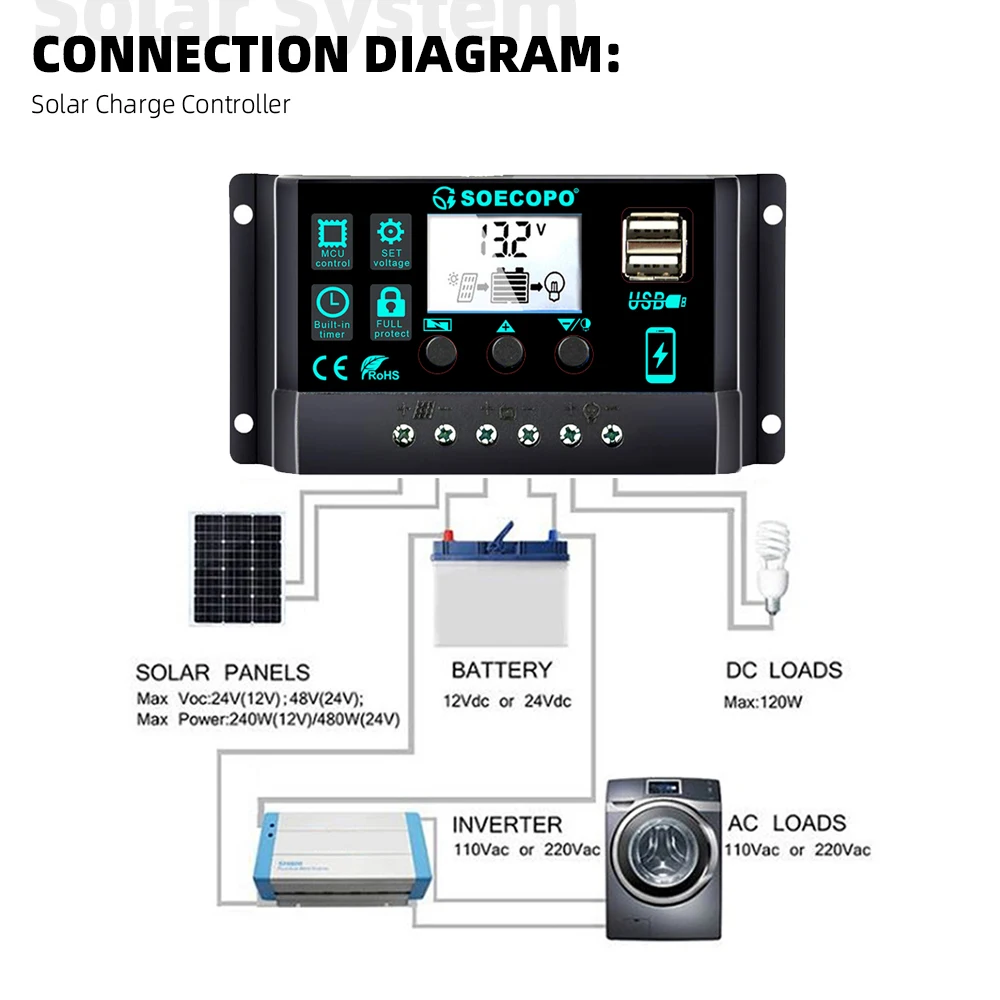

🛡️System connection

  • 1. Connect the battery to the positive and negative side of the charge regulator
  • 2. Connect the photovoltaic module to the positive and negative side of the regulator
  • 3. Connect the user to the positive and negative side of the charge regulator.
  • The opposite order applies when unloading!
  • Improper sequence can damage the controller!

❗ BUYER TIPS

⚠️ For best performance:

Match controller current ≥1.25x solar panel max current

Use with batteries ≥100Ah for 400W+ solar systems

10A: Maximum solar panel input is 240W
20A: Maximum solar panel input of 480W
30A: Maximum solar panel input 720W
40A: Maximum solar panel input of 960W
50A: Maximum solar panel input is 1200W
60A: Maximum solar panel input is 1440W
